Spadak X320 Desktop Single-Side Digital Printer

Spadak X320 is an efficient printing solution designed for mid-sized enterprises, featuring a 297mm print width to meet higher production demands.

Print speed

10-20 m/min

Print Resolution

1200x60 DPI / 1200x40 DPI

Print Width

297mm

Color Group Configuration

CMYK

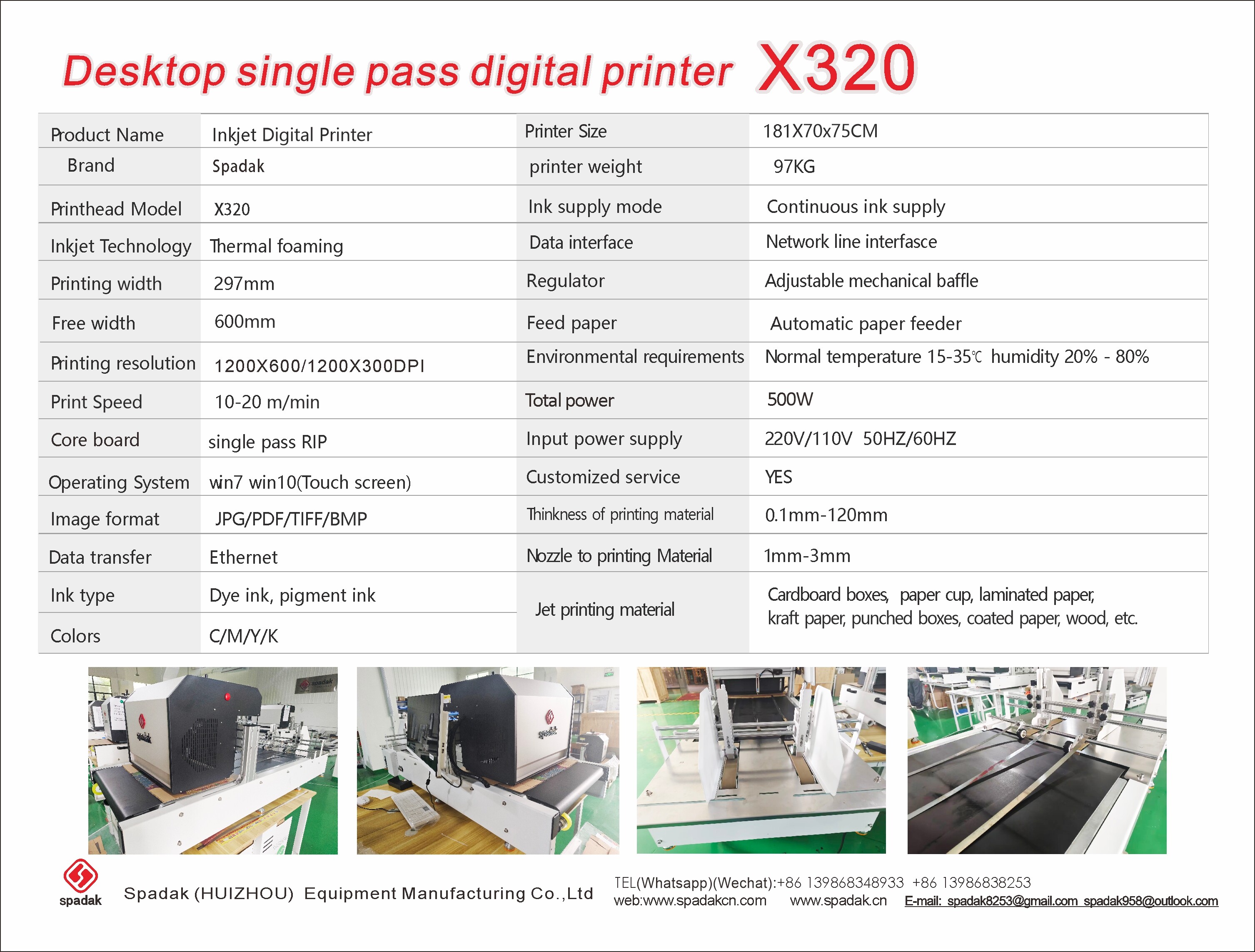

General Technical Specifications

Product Name	Single-Pass Digital Printer	Ink Level Detection	Ultrasonic Level Measurement System
Brand	Spadak	Nozzle Cleaning Method	Key-controlled inkjet
Spray Nozzle Model	XIP / HOP	Ink supply method	Continuous Ink Supply
Inkjet Technology	Thermal bubble/piezoelectric technology	Paper feeder head	Optional & Customizable
Print Type	OnePass	conveyor belt	Optional and customizable (suction guide belt type)
Print Resolution	1200×1200 DPI/1200×600DPI / 1200×300 DPI	Chassis Structure	All-in-one cast iron welding frame
Print speed	10-40 m/min	Beam Structure	All-Aluminum Construction
Core Module	Spadak Self-Development	Regulator	Adjustable Mechanical Baffle / Software Data Positioning
Operate software	Spadak2.0	Location Method	Infrared photoelectric sensing positioning
Operating System	Windows 7, Windows 0 (Touch screen)	System Requirements	Ambient temperature 15-35°C, humidity 20% - 80%
Image format	BMP/JPG/PDF/TIFF	Power Input	220V/110V 50HZ/60HZ
Data Transfer	Ethernet/USB 3.0/R232	Custom Services	YES
Ink Type	Dye ink, pigment ink	Print Material Thickness	0.1mm-20mm
Color	C/M/Y/K	Nozzle-to-Material Distance	1mm-3mm
Application Areas	Corrugated kraft paper, sponge paper, writing paper, rice paper, and other surface-absorbent materials or plastics with an inkjet layer	Ink Consumption	1 square meters consumes approximately 8 ml of ink.
